Activate a SQL data connector

Connector Overview

Mangrove offers pre-built data connectors for common database systems. Once activated, connectors automatically sync data from your external systems into your project.

The connectors authenticate and fetch data from the database on a scheduled cadence. This is set to a daily schedule of 11:59pm ET; we plan on making the cadence configurable soon.
Data is fetched from a set cursor value - this allows only the latest data to be pulled into Mangrove
SQL queries are run to fetch the data in CSV format

Available Connectors

Microsoft SQL Server
Snowflake
Snowflake (Secure Share)

Don’t see your database? Contact the Mangrove teamto discuss additional connector options.

Activate a Connector

Before you begin You will need:

Database connection details (host, port, database name)
Database credentials (username and password)
The event type(s) you want to transform the database data into in Mangrove

Adding a new SQL-fetch Data Feed

Add connector credentials

In your project, go to Data Inputs > Input Settings. Click Add Data Feed and select a database connector.

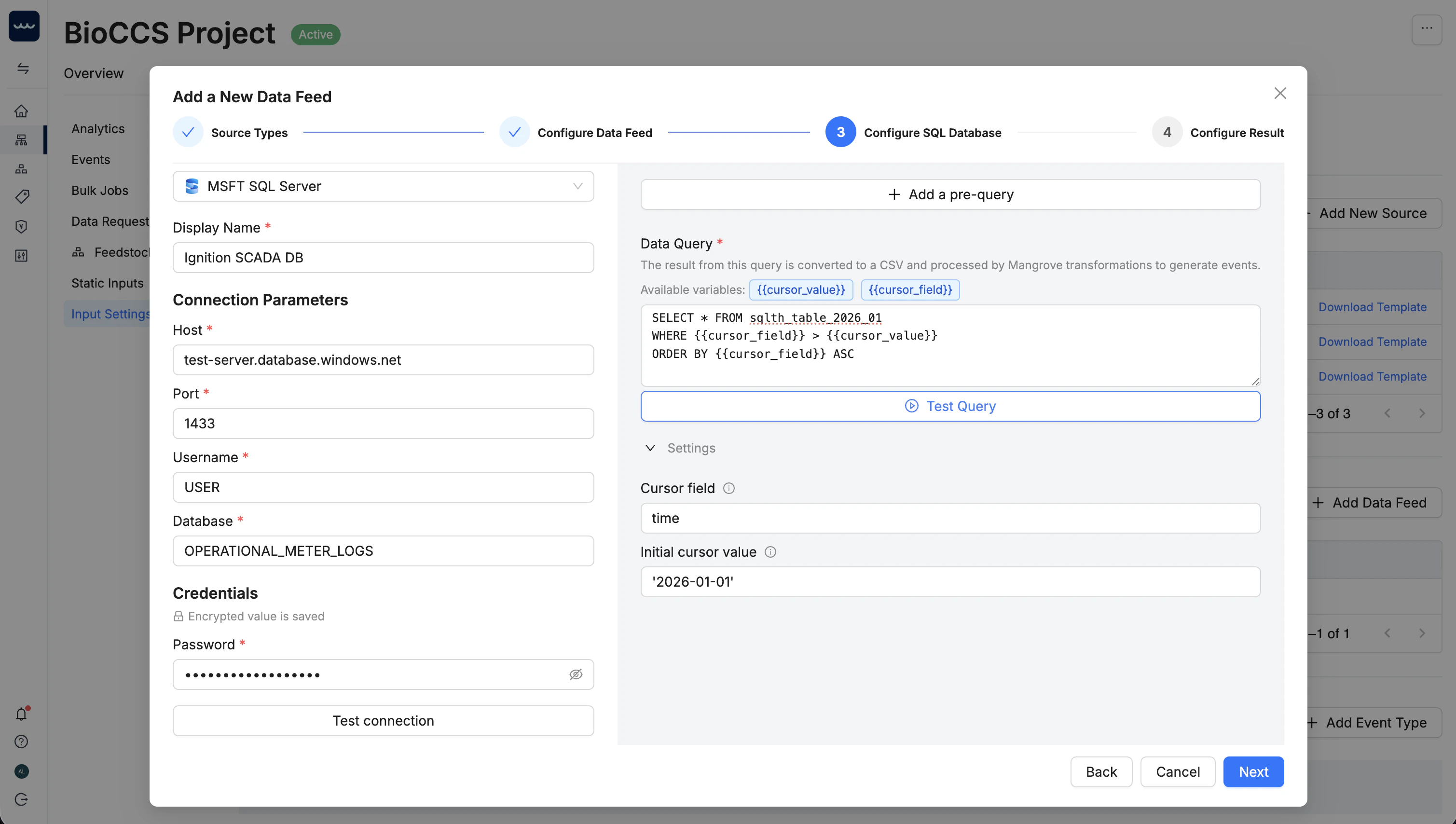

Configure the SQL data connector

Select your database type.Enter your database connection details (host, port, database name, username, password), then click Test Connection to verify access.

Mangrove connects directly to your database. Check that your firewall allows connections from Mangrove’s IPs. Contact support for the current allowlist.

Add the SQL pre-query and query

Add the SQL query, and test it to preview the results. You can also add a pre-query to retrieve the right tables for selecting data.Ensure you have set:

the cursor field
an initial cursor value

Writing SQL Queries

When writing your SQL query, you can reference the following variables. These variables enable dynamic queries based on the database configuration and the SQL pre-query.

Variable	Description	Example Value
`{{cursor_field}}`	The name of the column used as a cursor to track sync progress	`last_updated`
`{{cursor_value}}`	The most recent value fetched for the cursor field (e.g. timestamp or incrementing id)	`2024-05-31T23:59:00`
Pre-query variables	Any columns returned from your configured pre-query, referenced by name

You can reference these variables in your main SQL query using double curly braces, for example:

SELECT * FROM {{my_table_from_prequery}}
WHERE {{cursor_field}} > '{{cursor_value}}'
  AND company_id = '{{company_id_from_prequery}}'
ORDER BY {{cursor_field}} ASC

Troubleshooting

Connection failed

Verify the credentials are correct
Verify that there isn’t any firewall or VPN necessary to access the database.

No data appearing in query tests

Verify the source table contains data
Check that field mappings are correctly configured
Ensure the database user has SELECT permissions on the mapped tables

Duplicate data

Check if multiple connectors are pointing to the same table
Verify the sync schedule isn’t running too frequently

Managing Connectors

You can update the credentials for the connector in the Input Settings > Data Feed, then click Edit beside the SQL source to modify connection details.
